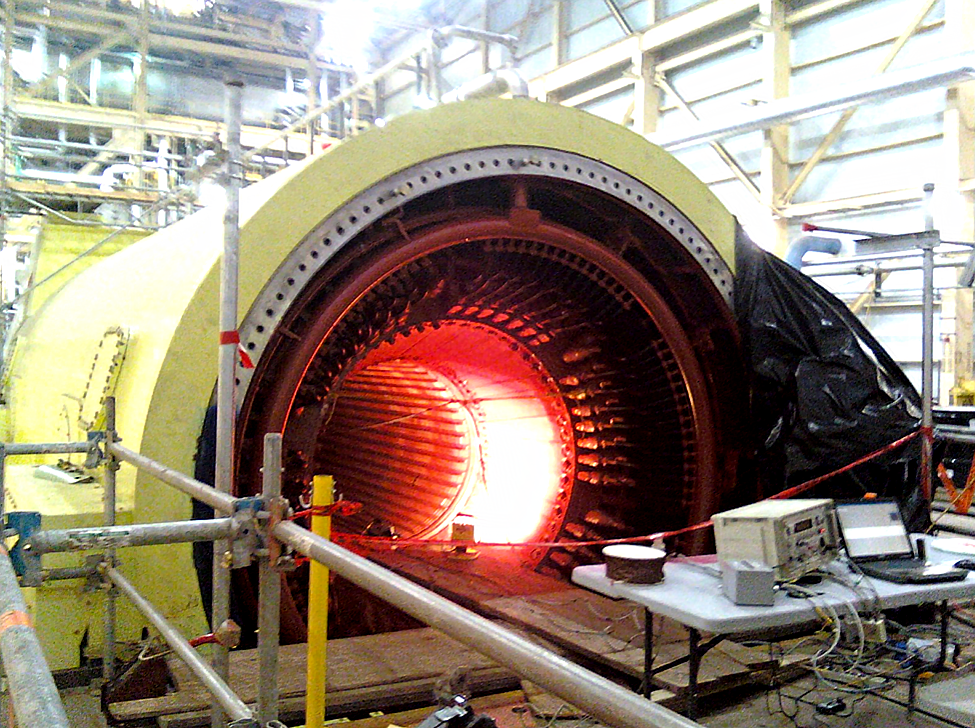

The RTS GATE-3 testing is an expanded option to our GATE-2 testing. This expanded testing includes additional Doble, Bump, and ELCID testing. The following testing will be performed during an GATE-3 generator test. This is included in a base bid:

Inspections/ Tests performed

  • Borescope inspection of stator winding, rotor winding and blocking (as accessible), stator core step laminations and fingerplates

  • Insulation resistance of RTD’s, stator winding, and rotor winding

  • Stator Winding Test – Polarization Index (PI), Resistance, DC step voltage test. ELCID, Wedge map

  • Rotor Winding Test – Polarization Index, Resistance, AC Impedance, RSO

  • Doble, Bump, and ELCID testing

Exciter inspection

  • Visual inspection

  • Insulation resistance tests

Final Report

  • Standardized format provided electronically (cd or electronic mail)

  • Photographs of critical areas in the stator winding, core, and rotor.

  • Dielectric absorption graph and analysis of insulation integrity

  • Summary of all insulation and winding resistance measurements taken.

  • Any anomalies reported immediately with the Final Report submitted within 10 days of inspection

Benefits

  • Reveals pending faults in winding of the rotor and stator.

  • Reveals deterioration of coil insulation caused by corona or end winding.

  • Reveals possible shorted core laminations

  • Reveals loose slot support system

  • Establishes a “base line” for evaluating future inspections and input for establishing planned major maintenance activities

    • Option – Electrical Isolation

    • RTS can also provide an estimate for the neutral and main leads disconnection prior to electrical testing and reconnect upon completion of testing.
